LOUVERED ROOF – CAMARGUE ®

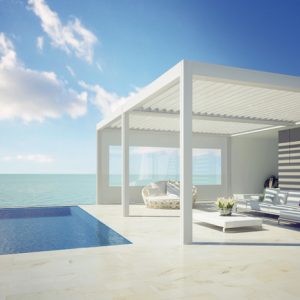

camargue 5 2 300x300 - LOUVERED ROOF - CAMARGUE ®

About Louvered Roof – Camargue

Camargue ® is an innovative terrace covering equipped with a bladed roof system, which can be closed off on both sides with wind-resistant integrated Fixscreens ®, glass sliding walls, sliding panels or a combination of the former.

The roof consists of extruded aluminum blades that can be tilted to adjust sun protection and ventilation as required. When closed, the terrace covering is waterproof in case of normal rain shower.

The extensive choice of colors and the various options for customizing the unit ensure that the Camargue ® fits into any building style.

Protect yourself against the sun, rain, wind or cold and enjoy!

This stylish louvered roof with a flat sun – and waterproof roof turns your terrace into a pleasant outdoor space. With an easy operation and a silent working of the blades you can realize the ideal incidence of light and ventilation in no time.

Enjoy an optimal living comfort, independent of the weather

When closed, the blades form a waterproof roof in normal showers. A gutter system drains the rainwater away towards the columns. These patented blades are designed in such a way that the water is drained off to the side if the blades open up after a rain shower.
The sides can be provided with moveable wall elements, which realize an extra protection.

Excellent user comfort

Thanks to different options, the terrace can be used from early in the morning until late in the evening. In this way, an additional living space is created. The louvered roof can be provided with lightning.
For an even better user comfort, there is also a rain- and wind sensor.

When lowered, motorized wind tight screens create a protective cocoon. Thanks to the partially transparent screens and optional crystal windows, the view of the garden remains.
You can also opt for sliding glass doors. And in combination with wind tight screens, the benefits of the sun protection system are undiminished.
Elegant sliding panels with wind tight screens or aluminum or wooden blades are another option. Wood is back again and is easy to combine with other materials.

The ultimate combination of quality and design

When developing your louvered roof we paid a lot of attention to quality of the whole system. The fixings are concealed and the electrical cables are hidden inside the structure. Even the ground support can be concealed. The materials used are weather-resistant, strong and maintenance-friendly.

Technical details:

  • Dimensions: Max. Span 4000 m x Pivot 6200 mm x Passage height 2800 mm / 0° inclination / joinable
  • Colours: Available in all RAL colours Powder­ coated and texture coating (60­80 micron)
  • Control: Electrical control
  • Rainfall intensity: The Camargue® can process a rainfall with an intensity of 0,04 to 0,05 l/s/m² which lasts max. 2 minutes. This kind of rainfall occurs on average every 10 years. (Cf. Belgian rain statistics: standard NBN B 52­011)
  • Wind resistance: Up to 120 km/h for closed blades
  • Snow load: Up to 110 kg/m2
